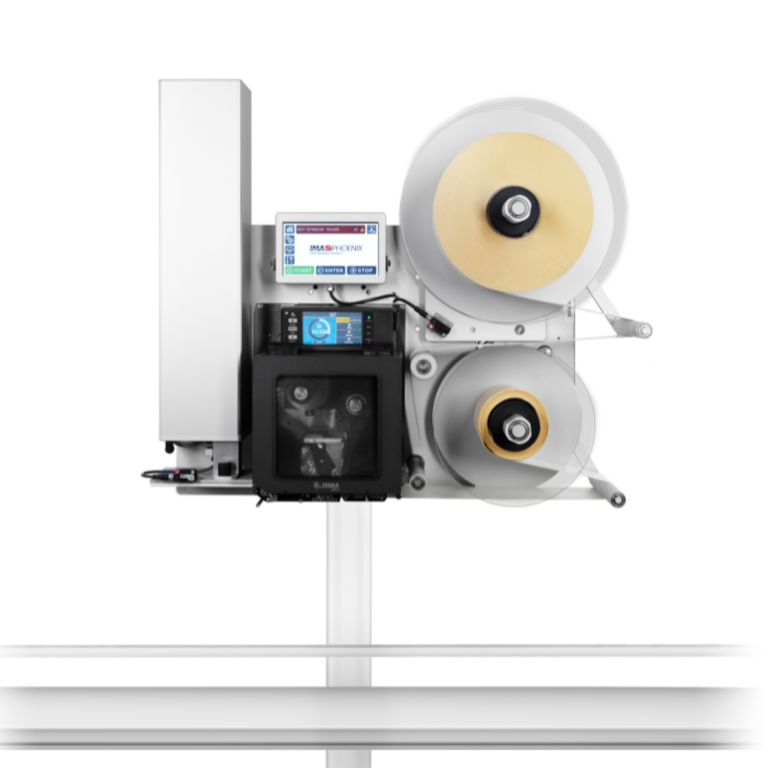

AE4050

Features & Dimension

Application type

Tamp, Tamp & Blow, Programmable stoke, Variable stroke with sensor.

Available version

Right or Left Hand. Suitable for 4” to 6” print engines, with standard mounting frame. With passive or motorized unwinder. Stroke 250, 500 or 800 mm, with Fixed or Quick-exchange Tamp Pad

Uses

On steady or moving products

Typical application side

Top side, Back side, Lateral side.

Label size (W x H)

Label roll Ø

Min 20×20 mm, Max tamp dimension:  160×220 mm (on 6” version)

External Ø= 300 mm, Optional= 350 mm,   Core Ø= 76 mm 93”)

Rewinder capabilty

Up 190 mm

Available nominal strokes

Application rate

Accuracy

250mm / 500mm / 800mm (with pad limitation)

Up to 60 labels/minute (printer speed, label dimensions and stroke depending)

+/- 0,5 mm typical

HMI Display

Display controller ot Touch screen display controller

Connectors

M12 Connector: Display / Primary Product          Sensor / Secondary Product Sensor / Low label sensor / Alarm Lamp; I/O on DB25 connector.

Printer Interface on dedicated connector with cable. USB Port for PC interfacing – configuration, diagnosis, service, upgrade.

Optional Ethernet: for PC interfacing – configuration, diagnosis, service, upgrade. M12 Analogic Input e Bus Expansion.

Dimensions in mm ( H x W x D)

736 x 557 x 135 (stroke 250 mm) printer depth excluded, 736 x 807 x 295 (stroke 500mm) printer depth excluded

Compressed air

Ambient temperature

Air pressure 6 Bar

5 – 35°C

Power connection

90-240 VAC. 50-440 Hz

Power consumption

130 Watt @ max rate. 20W in stand by

Enviromental conditions

20-90% relative humidity (non condensing)

Weight

up to 25Kg according to version (without label roll and printer)
